| Specifications | |
| Impedance: | 50Ω, 75Ω |
| Frequency range: | 0 ~ 4 GHz |
| Resistance: | Inner conductor ≤ 2.0mΩ |
| External resistance: | ≤ 0.2mΩ |
| Insulation Resistance: | ≥ 5000MΩ |
| Withstand Voltage: | 1500V rms |
| Durability: | over 1000 times |
| Center Pin: | Brass |
| Frequency response: | DC to 8 MHz |
| Attenuation: | 0.5dB typ |
| Material: | Plastic and Copper |
| Working temperature: | -20°C ~ 75°C |
| Storage temperature: | -30°C ~ 85°C |
| Humidity: | 0% ~ 95%RH |
| Package: | 100pcs/pack, 30pack/carton |
| Weight: | Approx 0.75kg/100pcs/polybag |
| Remark: |
Simply & Professional appearance for cabling Easier for installation, save time and more securer cable connection |

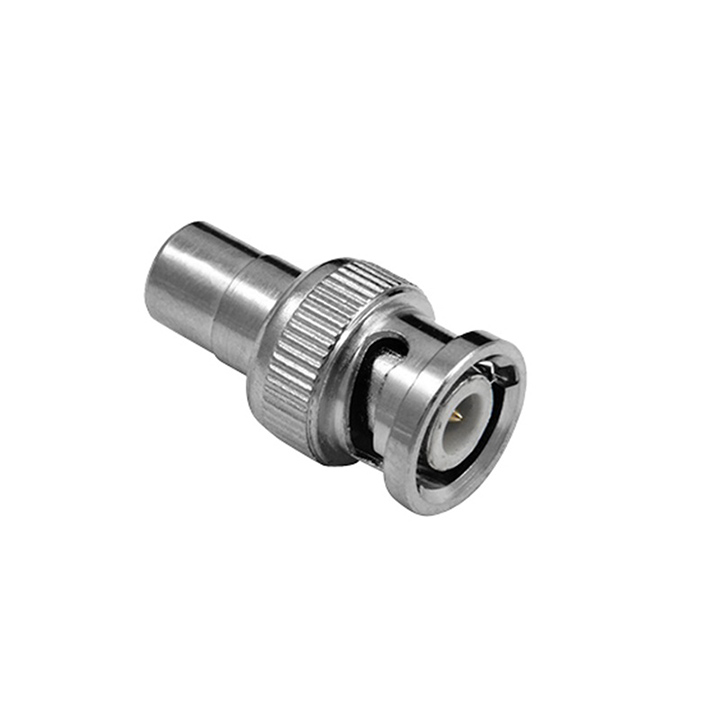

More about BNC COMPRESSION CONNECTOR:
Discover the detailed specifications of our RF coaxial connectors, designed for reliable performance in various applications. With impedance options of 50Ω and 75Ω, these connectors cover a broad frequency range from 0 to 4 GHz. The inner conductor exhibits low resistance (≤ 2.0mΩ), and external resistance is minimal (≤ 0.2mΩ). Insulation resistance exceeds 5000MΩ, ensuring a secure and efficient connection. These connectors withstand voltage up to 1500V rms and demonstrate durability through over 1000 cycles. The center pin, crafted from brass, ensures conductivity and longevity. The frequency response spans from DC to 8 MHz, with an attenuation of 0.5dB (typ). Constructed with a blend of plastic and copper materials, these connectors offer a professional appearance while simplifying cabling. Installation is made easier, saving time and providing a more secure cable connection. Operating in a wide temperature range (-20°C to 75°C) and storage temperature range (-30°C to 85°C), these connectors withstand diverse environmental conditions. Packaged conveniently in 100pcs/pack, with 30 packs per carton, weighing approximately 0.75kg/100pcs/polybag. Trust these connectors for their simplicity, professionalism, and robust design, ensuring reliable connections for your applications.
