| Main Processor | Embedded Processor |
| Model | Dahua DH-XVR1B08-I |
| Operating System | Embedded LINUX |
| Analog Camera Input | 8 Channel, BNC |
| HDCVI Camera | 1080P@25/30fps, 720P@25/30fps |
| IP Camera Input | 8CH: 8+1, each channel up to 2MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
| Video Compression | H.264 |
| Resolution | 1080N, 720P, 960H, D1, CIF |
| Video Bit Rate | 32Kbps ~ 4096Kbps Per Channel |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Audio Bit Rate | 64Kbps Per Channel |
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Display |
8CH: 1/8 When IP extension mode enabled: 8CH: 1/8 |
| Interface | 1 RJ-45 Port (100M) |
| Smart Phone | iPhone, iPad, Android |
| Playback | 8CH: 1/8 |
| Backup Mode | USB Device/Network |
| Internal HDD | 1 SATA Port, up to 6TB capacity |
| Power Supply | DC12V/1.5A |
| Net Weight | 0.55kg (1.2lb) |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Warranty | 1 Year |
See more about Dahua DH-XVR1B08-I 8-Channel HD XVR

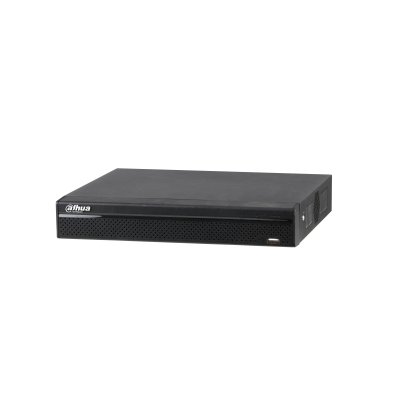

"The Dahua DH-XVR1B08-I is a high-performance 8-channel HD XVR featuring an embedded processor and robust Embedded LINUX operating system. With support for analog and HDCVI cameras, it delivers crystal-clear video quality at 1080P@25/30fps and 720P@25/30fps.
This XVR provides flexibility with IP camera inputs, accommodating up to 8 channels with each channel supporting up to 2MP. Audio features include 1/1 audio in/out with two-way talk functionality, providing comprehensive audio support.
Video compression is handled efficiently with H.264, ensuring optimized storage and bandwidth utilization. Versatile resolution options include 1080N, 720P, 960H, D1, and CIF, catering to various surveillance needs.
The XVR offers user-friendly interfaces with HDMI and VGA outputs, supporting resolutions such as 1920×1080 and 1280×720. The display options include 1/8 channels, providing flexibility in monitoring.
Network connectivity is seamless with an RJ-45 port (100M), supporting smart devices like iPhone, iPad, and Android for remote monitoring. Playback options include 1/8 channels, and backup modes involve USB devices and network storage.
For storage, the XVR features 1 SATA port, supporting up to 6TB capacity for internal HDD. Powering the system is convenient with a DC12V/1.5A power supply.
Weighing only 0.55kg (1.2lb), the Dahua DH-XVR1B08-I is lightweight and compact. It is backed by a 1-year warranty and offers compatibility with third-party brands, including Dahua, Arecont Vision, AXIS, Bosch, and more. Upgrade your surveillance with Dahua's reliable and feature-rich HD XVR."
