| Recording | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF |
|
| Record Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) |
|
| Bit Rate | 32 Kbps to 4 Mbps | |
| Video Detection And Alarm | ||
| Alarm Input | N/A | |
| Network | ||
| Ethernet Port | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | |
| Storage | ||
| Internal HDD | 1 SATA interface | |
| Auxiliary Interface | ||
| USB | Rear panel: 2 × USB 2.0 | |
| Power | ||
| Power Supply | 12 VDC, 1.5 A | |
| Power Consumption | ≤ 16 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10 °C to 55 °C (14 °F to +31 °F) | |
| Construction | ||
| Dimensions | 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) | |
| Net Weight | ≤ 0.8 kg (without HDD, 1.8 lb.) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
Advanced Video Recording Hub: Unparalleled Efficiency, Versatility, and Security:

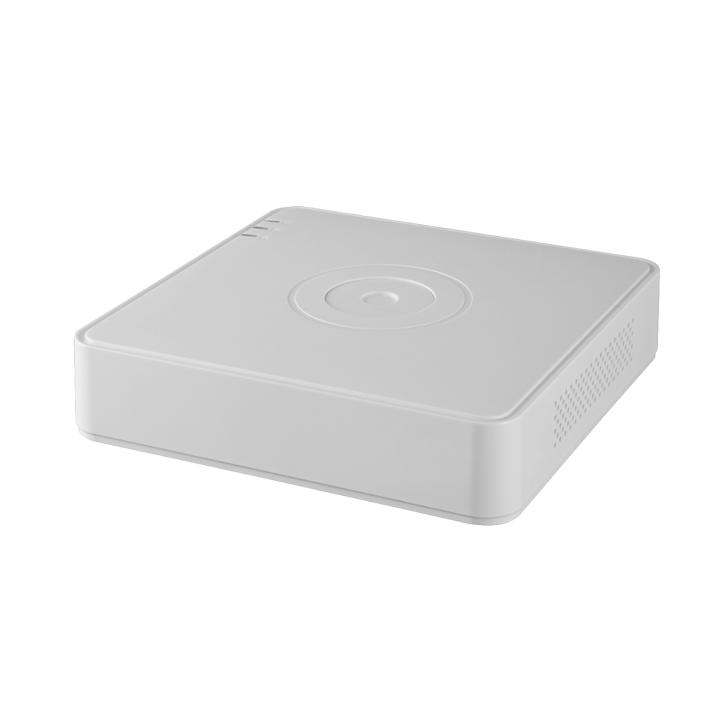

The Hikvision DS-7104HGHI-K1 is a compact and powerful 4-channel HD 2MP XVR designed for efficient and reliable surveillance. With advanced compression technologies like H.265 Pro+, it ensures optimal storage and bandwidth utilization. This XVR supports versatile recording resolutions, providing options like 1080p Lite, 720p Lite, WD1, 4CIF, VGA, and CIF to cater to diverse surveillance needs.
The record rates are impressive, reaching up to 25 fps (P)/30 fps (N) for various stream accesses. Key features include video detection and alarm functionalities, along with network connectivity through a 10/100 Mbps Ethernet port supporting TCP/IP, PPPoE, DHCP, and more. The XVR features a single SATA interface for internal HDD, offering sufficient storage capacity. The DS-7104HGHI-K1 is user-friendly with two USB 2.0 ports for convenient data transfer. It operates on a 12VDC power supply, consuming a power of ≤ 16 W (without HDD). The operational conditions range from -10°C to 55°C, making it suitable for diverse environments. Compact in design, the XVR measures 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inches) and weighs ≤ 0.8 kg (without HDD). Hikvision provides a 1-year manufacturing warranty, ensuring the reliability and longevity of the DS-7104HGHI-K1 for your surveillance needs.
